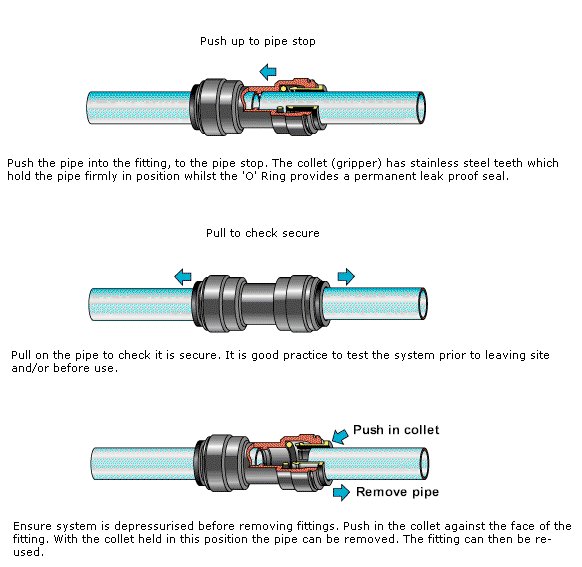

| Features: Uses with this item | | Quick push-in style | | Specifications | fits for 1/4" RO tube The fittings may/maynot come with a blue snap ring (shaped like a C, used for locking the tube so it doesn't leak) To connect the standard quick push-in fittings:
(1) Remove the blue snap ring.
(2) Insert tube all the way into the socket.

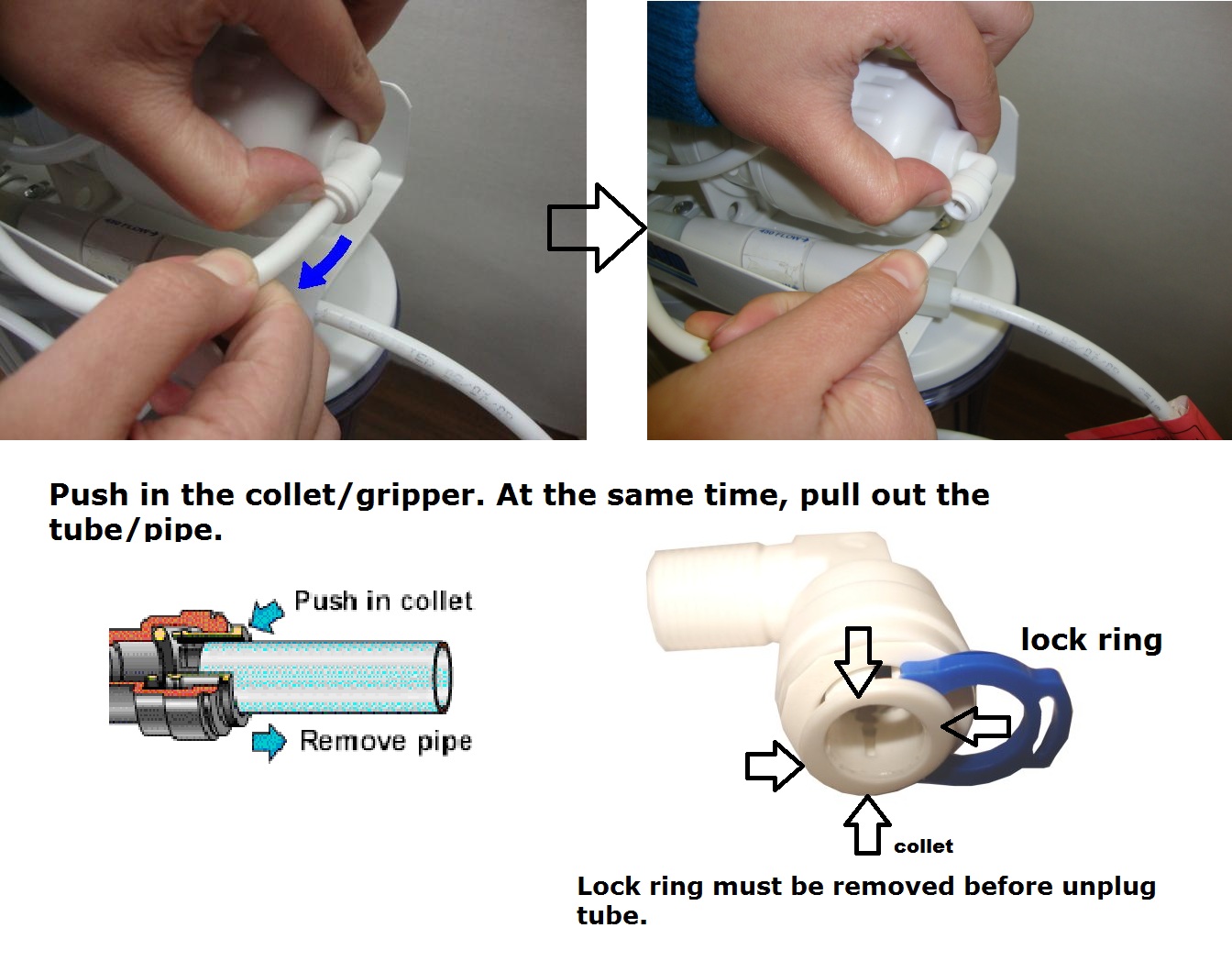

(3) Lock in the blue C ring To disconnect the standard quick push-in fittings:
(1) Remove the blue snap ring.

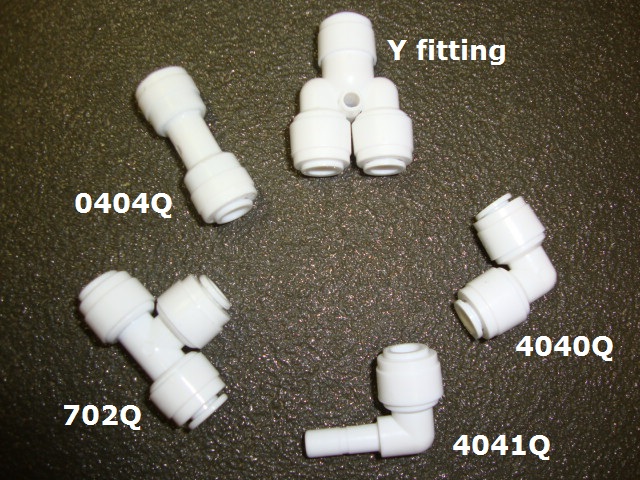

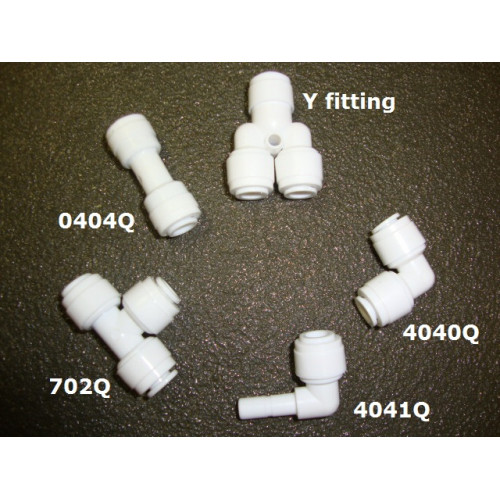

(2) Push in the collet, at the same time, pull out the tube.  | | Package Content | | select any 5 pcs fittings ((if no specify, we will ship 5 different fittings in one package)) Y-1/4" tube x 1/4" tube x 1/4" tube 4040Q-1/4" tube x 1/4" tube 4041Q-1/4" tube x 1/4" male hard tube 702Q-1/4" tube x 1/4" tube x 1/4" tube 0404Q-1/4" tube x 1/4" tube
| |
